2.54mm Pitch Connectors

FLAT CABLE TO WIRE NCCH254A SERIES

Features and applications

  • 2.54mm Pitch, for use with NCCT254A Crimp Terminal
  • Mates with 1L series Crimpflex Housing or 1L-10 series PCB connector
  • Suitable for converting from Flat Cable/Membranes to discreet cable
  • Temperature Range -25 to +85Deg C
  • Material, PBT94V-O 30% Glass
  • Colour, Black
  • Available in 2 - 12 ways

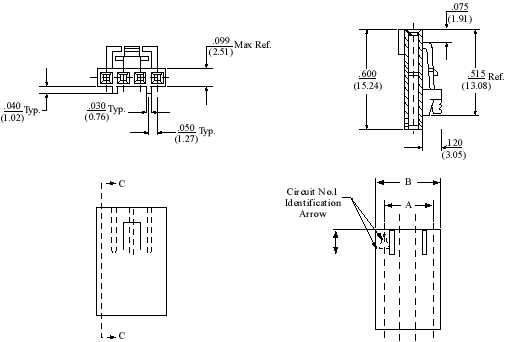

Package Outline Drawing


No of Ways
Part No
Dimension in (mm)
A
B
2
NCCH254A-02
.100 (2.54)
.199 (5.05)
3
NCCH254A-03
.200 (5.08)
.299 (7.59)
4
NCCH254A-04
.300 (7.62)
.399 (10.13)
5
NCCH254A-05
.400 (10.16)
.499 (12.67)
6
NCCH254A-06
.500 (12.70)
.599 (15.21)
7
NCCH254A-07
.600 (15.24)
.699 (17.75)
8
NCCH254A-08
.700 (17.78)
.799 (20.29)
9
NCCH254A-09
.800 (20.32)
.899 (22.83)
10
NCCH254A-10
.900 (22.86)
.999 (25.37)
11
NCCH254A-11
1.00 (25.40)
1.099 (27.91)
12
NCCH254A-12
1.10 (27.94
1.199 (30.45)

Part Numbering System




FEMALE CRIMP TERMINAL NCCT254A SERIES

Features and Applications
  • 2.54mm pitch, for use with NCCH254A Terminal Housing
  • 15,000 pieces per reel
  • 22-30 AWG Wire Gauge
  • Phosphor Bronze, Brass Tin plated

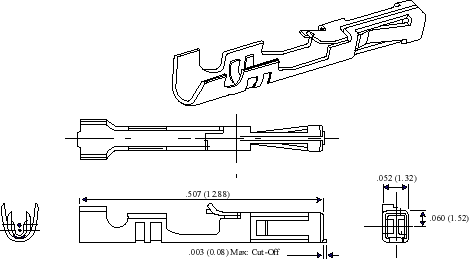

Package Outline Drawing


Part Numbering System
