Crimpflex Connector System

7F10 SERIES HOUSING 7F10-xx

Features

• The low height of this housing makes it suitable for right angle connection
• Ideal for high density low profile applications
• Suitable for use with 0.635mm pin headers
• 2.54mm pitch
• No polarisation / locking
• 2-25 Ways
• Single row

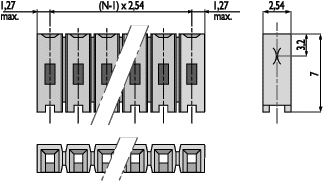

Package Outline Drawing

Dimensions : mm

Part Numbering System
