Crimpflex Connector System

4F SERIES HOUSING 4F-xx

Features

• Allows connection of a double row flexcable jumper onto 2 rows
• Suitable for use with 0.635mm pin headers
• stackable edge to edge
• 2.54mm pitch
• No polarisation / locking
• 3-40 Ways
• Double row
• Mates with 16-17-111-XX-1 Pin header

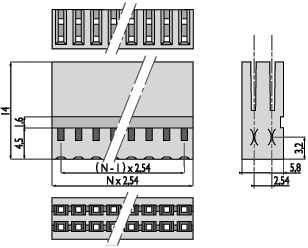

Package Outline Drawing

Dimensions : mm

Part Numbering System
