SHIELDING FOR MALE 90° PCB

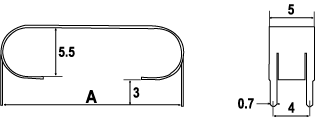

Package Outline Drawing
![](cmm%20pics/12998%20od.gif)
Dimensions : mm
Product Selection Guide |
Part Number |
No of Contacts
|
A
|
12998-06 |
06
|
16
|
12998-10 |
10
|
20
|
12998-14 |
14
|
24
|
12998-20 |
20
|
30
|
12998-26 |
26
|
36
|
12998-34 |
34
|
44
|
12998-42 |
42
|
52
|
12998-50 |
50
|
60
|

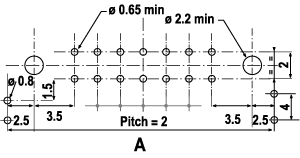

PCB LAYOUT
![](cmm%20pics/12998%20shielding%20male%2090%20pcb%20lo.gif)
