2.54mm Pitch Connectors
HE13/HE14 WALLED HEADERSFeatures
- 0.635mm (.025") square pin header
- 40 contacts per row male headers
- Stackable end to end
- LNZ certification HE13: 6160, HE14: 6145
- GAM T1 certification

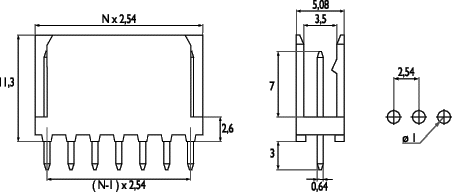

Straight Single Row Walled
 |
 |
||
|
Part Number
|
Plating
|
Number of Contacts xx
|
|
|
1Y-10-111-XX-1
|
Tin Plated
|
02 to 20
|
|
|
1Y-10-141-XX-1
|
Gold Plated
|
02 to 20
|
|
|
1Y-10-131-XX-1
|
Selective Gold Plated
|
02 to 20
|
|

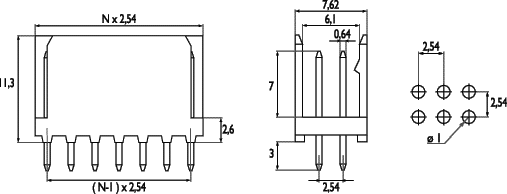

Straight Double Row Walled
 |
 |
||
|
Part Number
|
Plating
|
Number of Contacts xx
|
|
|
1Y-20-111-XX-1
|
Tin Plated
|
04 to 40
|
|
|
1Y-20-141-XX-1
|
Gold Plated
|
04 to 40
|
|
|
1Y-20-131-XX-1
|
Selective Gold Plated
|
04 to 40
|
|

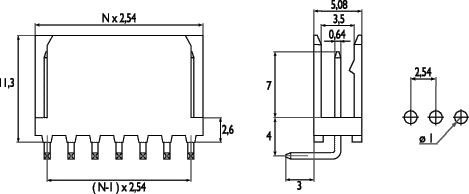

Right Angle Single Row Walled
 |
 |
||
|
Part Number
|
Plating
|
Number of Contacts xx
|
|
|
1Y-10-211-XX-1
|
Tin Plated
|
02 to 20
|
|
|
1Y-10-241-XX-1
|
Gold Plated
|
02 to 20
|
|
|
1Y-10-231-XX-1
|
Selective Gold Plated
|
02 to 20
|
|

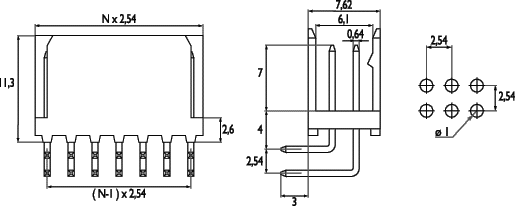

Right Angle Double Row Walled
 |
 |
||
|
Part Number
|
Plating
|
Number of Contacts xx
|
|
|
1Y-20-211-XX-1
|
Tin Plated
|
04 to 40
|
|
|
1Y-20-241-XX-1
|
Gold Plated
|
04 to 40
|
|
|
1Y-20-231-XX-1
|
Selective Gold Plated
|
04 to 40
|
|
