2.54mm Pitch Connectors
.025" SQUARE PIN, SINGLE ROW RIGHT ANGLE
SMD HEADER

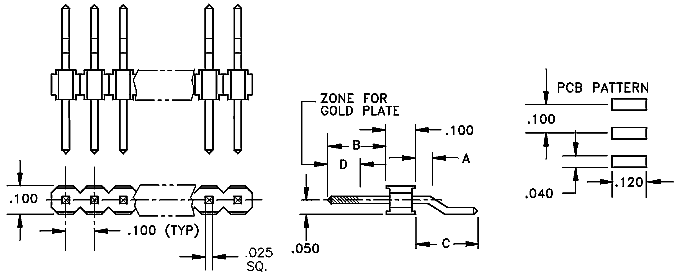

Package Outline Drawing
![](htsmra4300.gif)
Characteristics
Product Selection Guide |
Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
Plating
Options
YY
|
Number
of
Positions
XX
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
NHTSMRA4300-XXYY |
0.76
|
.030
|
3.30
|
.130
|
5.08
|
.200
|
5.84
|
.230
|
G2; G230; T
|
4-20
|
NHTSMRA4300-XXYY |
0.76
|
.030
|
5.84
|
.230
|
5.08
|
.200
|
5.84
|
.230
|
G2; G230; T
|
4-20
|
NHTSMRA4300-XXYY |
0.76
|
.030
|
8.38
|
.330
|
5.08
|
.200
|
5.84
|
.230
|
G2; G230; T
|
4-20
|
NHTSMRA4300-XXYY |
2.54
|
.100
|
6.81
|
.268
|
5.08
|
.200
|
6.81
|
.268
|
G2; G230; T
|
4-20
|
Technical Characteristics |
Contact Material |
Pin: Phosphor Bronze, 0.25" sq pin,
burr free both ends |
Insulation Material |
Glass Filled Nylon 46, UL94V-O rated black |
Heat Deflection |
260° @ 264 PSI per ASTM D648 |
Insulation Resistance |
5,000 Meg Ohm @ 500VDC |
Current Rating |
3 amp continuous @ 100VDC/contact |
Max Processing Temp |
250°C for 60 seconds |
Plating |
T = Tin 150µ" (3.8µ)
bright tin over 50µ" (1.3µ) Ni |
G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at
mating end - balance of pin 150µ" (3.8µ) bright tin
over
50µ" (1.3µ) Ni |
G230 = Tin/30µ"Gold - 30µ"
(.76µ) gold over 50µ" (1.3µ) Ni at mating end
- balance of pin 150µ" (3.8µ) bright tin over
50µ" (1.3µ) Ni |
