2.54mm Pitch Connectors
.025" SQUARE PIN, DOUBLE ROW STRAIGHT SMD HEADER

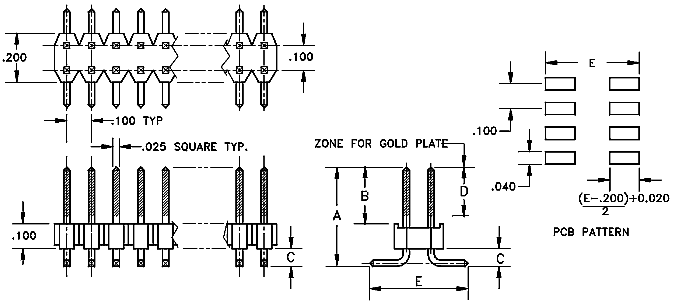

Package Outline Drawing
![](htsm3203.gif)
Characteristics
Product Selection Guide |
Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
"E"
|
Plating
Options
YY
|
Number
of
Positions
XX
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
NHTSM3203-XXYY |
9.27
|
.365
|
6.22
|
.245
|
.508
|
.020
|
5.84
|
.230
|
8.26
|
.325
|
G2; G230; T
|
4-40
|
NHTSM3204-XXYY |
11.18
|
.440
|
8.13
|
.320
|
5.08
|
.020
|
8.13
|
.320
|
8.50
|
.335
|
G2; G230; T
|
4-40
|
NHTSM3201-XXYY |
9.14
|
.360
|
5.84
|
.230
|
.508
|
.020
|
5.84
|
.230
|
8.13
|
.320
|
G2; G230; T
|
4-40
|
Technical Characteristics |
Contact Material |
Pin: Phosphor Bronze, 0.25" sq pin,
burr free both ends |
Insulation Material |
Glass Filled Nylon 46, UL94V-O rated black |
Heat Deflection |
260° @ 264 PSI per ASTM D648 |
Insulation Resistance |
5,000 Meg Ohm @ 500VDC |
Current Rating |
3 amp continuous @ 100VDC/contact |
Max Processing Temp |
250°C for 60 seconds |
Plating |
T = Tin 150µ" (3.8µ)
bright tin over 50µ" (1.3µ) Ni |
G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at
mating end - balance of pin 150µ" (3.8µ) bright tin
over
50µ" (1.3µ) Ni |
G230 = Tin/30µ"Gold - 30µ"
(.76µ) gold over 50µ" (1.3µ) Ni at mating end
- balance of pin 150µ" (3.8µ) bright tin over
50µ" (1.3µ) Ni |
