2.54mm Pitch Connectors
.025" SQUARE PIN, BOARD STACKING TRIPLE ROW STRAIGHT HEADER

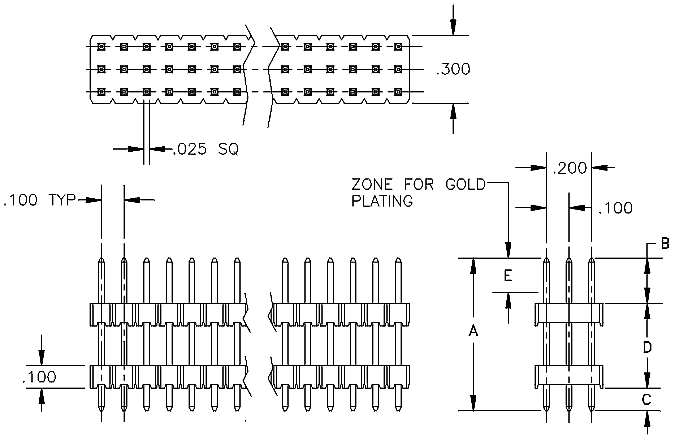

Package Outline Drawing
Characteristics
| Product Selection Guide | ||||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
G2 Duplex Plating Avail 1 end only
|
Plating
Options YY |
Number
of Positions XX |
|||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| NDH3-235/200/100-XXYY |
13.59
|
.535
|
5.97
|
.235
|
2.54
|
.100
|
5.08
|
.200
|
5.84
|
.230
|
G1; G2; G230; T
|
6-120
|
| NDH3-235/300/100-XXYY |
16.13
|
.635
|
5.97
|
.235
|
2.54
|
.100
|
7.62
|
.300
|
5.84
|
.230
|
G1; G2; G230; T
|
6-120
|
| NDH3-235/400/100-XXYY |
18.67
|
.735
|
5.97
|
.235
|
2.54
|
.100
|
10.16
|
.400
|
5.84
|
.230
|
G1; G2; G230; T
|
6-120
|
| NDH3-235/500/100-XXYY |
21.20
|
.835
|
5.97
|
.235
|
2.54
|
.100
|
12.70
|
.500
|
5.84
|
.230
|
G1; G2; G230; T
|
6-120
|
| NDH3-235/600/100-XXYY |
23.75
|
.935
|
5.97
|
.235
|
2.54
|
.100
|
15.24
|
.600
|
5.84
|
.230
|
G1; G2; G230; T
|
6-120
|
| NDH3-235/700/100-XXYY |
26.29
|
1.035
|
5.97
|
.235
|
2.54
|
.100
|
17.78
|
.700
|
5.84
|
.230
|
G1; G2; G230; T
|
6-120
|
| NDH3-235/800/100-XXYY |
28.83
|
1.135
|
5.97
|
.235
|
2.54
|
.100
|
20.32
|
.800
|
5.84
|
.230
|
G1; G2; G230; T
|
6-120
|
| NDH3-235/900/100-XXYY |
31.37
|
1.235
|
5.97
|
.235
|
2.54
|
.100
|
22.86
|
.900
|
5.84
|
.230
|
G1; G2; G230; T
|
6-120
|
| NDH3-235/1000/100-XXYY |
33.90
|
1.335
|
5.97
|
.235
|
2.54
|
.100
|
25.40
|
1.00
|
5.84
|
.230
|
G1; G2; G230; T
|
6-120
|
| NDH3-235/1100/100-XXYY |
36.45
|
1.435
|
5.97
|
.235
|
2.54
|
.100
|
27.94
|
1.10
|
5.84
|
.230
|
G1; G2; G230; T
|
6-120
|
| NDH3-235/370/230-XXYY |
21.20
|
.835
|
5.97
|
.235
|
5.84
|
.230
|
9.40
|
.370
|
5.84
|
.230
|
G1; G2; G230; T
|
6-120
|
| NDH3-235/470/230-XXYY |
23.75
|
.935
|
5.97
|
.235
|
5.84
|
.230
|
11.94
|
.470
|
5.84
|
.230
|
G1; G2; G230; T
|
6-120
|
| NDH3-235/570/230-XXYY |
26.29
|
1.035
|
5.97
|
.235
|
5.84
|
.230
|
14.48
|
.570
|
5.84
|
.230
|
G1; G2; G230; T
|
6-120
|
| NDH3-235/770/230-XXYY |
31.37
|
1.235
|
5.97
|
.235
|
5.84
|
.230
|
18.56
|
.770
|
5.84
|
.230
|
G1; G2; G230; T
|
6-120
|
| NDH3-235/970/230-XXYY |
36.45
|
1.435
|
5.97
|
.235
|
5.84
|
.230
|
24.64
|
.970
|
5.84
|
.230
|
G1; G2; G230; T
|
6-120
|
| Technical Characteristics | |
| Contact Material | Pin: Phosphor Bronze, 0.25" sq pin, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G1 = Gold - 10µ" (.25µ) gold over 50µ" (1.30µ) Ni | |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
|
G230 = Tin/30µ"Gold - 30µ" (.76µ) gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
