2.54mm Pitch Connectors
EXTENDER, SINGLE ROW STRAIGHT, accepting .020" DIAMETER ROUND PIN, SCREW MACHINE SOCKET

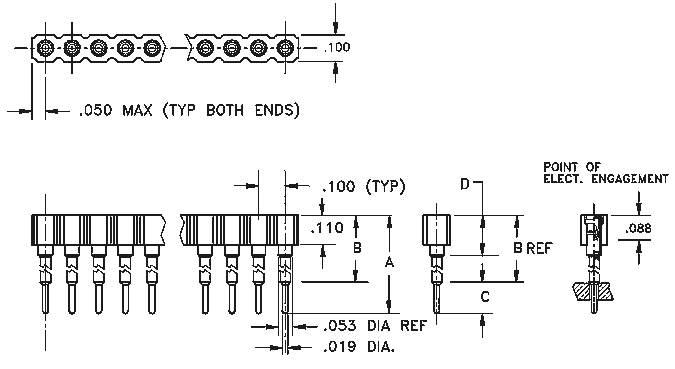

Package Outline Drawing
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
Max Insert Depth
"D" |
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N7170-XXYY |
8.71
|
.343
|
4.39
|
.173
|
4.32
|
.170
|
3.68
|
.145
|
G2
|
1-32
|
| N7171-XXYY |
8.99
|
.354
|
5.99
|
.236
|
3.00
|
.118
|
3.68
|
.145
|
G2
|
1-32
|
| N7172-XXYY |
11.00
|
.433
|
8.00
|
.315
|
3.00
|
.118
|
3.68
|
.145
|
G2
|
1-32
|
| N7173-XXYY |
13.21
|
.520
|
10.21
|
.402
|
3.00
|
.118
|
3.68
|
.145
|
G2
|
1-32
|
| N7174-XXYY |
14.99
|
.590
|
11.99
|
.472
|
3.00
|
.118
|
3.68
|
.145
|
G2
|
1-32
|
| N7175-XXYY |
18.08
|
.712
|
15.09
|
.594
|
3.00
|
.118
|
3.68
|
.145
|
G2
|
1-32
|
| Technical Characteristics | |
| Contact Material | Shell: Phosphor Bronze, Contact Clip: 4 finger BeCu [#30] |
| Insulation Material | Thermoplastic, UL94V-O rated black |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 125°C for 60 seconds |
| Insertion Force | 230 grams (8.1oz) (typ initial force per contact w/.020" round pin) [#30] |
| Extraction Force | 115 grams (4.1oz) (typ initital force per contact w/.020" round pin) [#30] |
| Plating | G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
