2.54mm Pitch Connectors
.020" DIAMETER ROUND PIN, DOUBLE ROW STRAIGHT HEADER

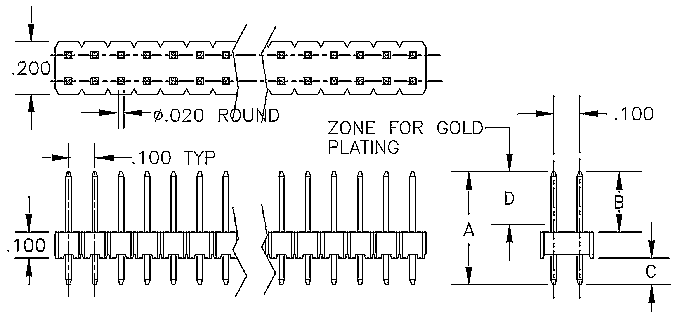

Package Outline Drawing
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
Overall
"A" |
Overall
"B" |
Below
"C" |
Gold
on "G2" Duplex Plate "D" |
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N7051-XXYY |
8.64
|
.340
|
3.56
|
.140
|
2.34
|
.092
|
3.56
|
.140
|
G2; T
|
2-80
|
| N7052-XXYY |
12.70
|
.500
|
7.63
|
.300
|
2.54
|
.100
|
3.94
|
.155
|
G2; T
|
2-80
|
| N7053-XXYY |
16.00
|
.630
|
10.92
|
.430
|
2.79
|
.110
|
3.94
|
.155
|
G2; T
|
2-80
|
| N7054-XXYY |
17.78
|
.700
|
12.70
|
.500
|
2.54
|
.100
|
3.94
|
.155
|
G2; T
|
2-80
|
| N7055-XXYY |
8.64
|
.340
|
3.05
|
.120
|
3.05
|
.120
|
3.05
|
.120
|
T
|
2-80
|
| N7056-XXYY |
12.70
|
.500
|
6.86
|
.270
|
3.30
|
.130
|
3.94
|
.155
|
G2; T
|
2-80
|
| N7057-XXYY |
16.00
|
.630
|
10.16
|
.400
|
3.30
|
.130
|
3.94
|
.155
|
G2; T
|
2-80
|
| N7058-XXYY |
17.78
|
.700
|
11.43
|
.450
|
3.81
|
.150
|
3.94
|
.155
|
G2; T
|
2-80
|
| N7059-XXYY |
25.40
|
1.00
|
19.30
|
.760
|
3.56
|
.140
|
3.56
|
.140
|
G2; T
|
2-80
|
| Technical Characteristics | |
| Contact Material | Pin: Phosphor Bronze, 0.20" diameter pin, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
