2.54mm Pitch Connectors
.025" SQUARE PIN, SINGLE ROW STRAIGHT HEADER

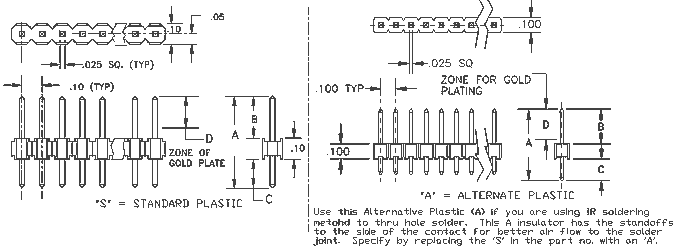

Package Outline Drawing
Characteristics
| Product Selection Guide | ||||||
| Part Number |
Dimension |
Dimension
above "B" (mm) |
Dimension
below "C" (mm) |
Gold
plating Zone (mm) |
Plating Options
|
Number
of ways " XX" |
| N3800S-XXYY |
8.38
|
2.92
|
2.92
|
2.92
|
G1; G2; G230; T
|
2-40
|
| N3848S-XXYY |
8.38
|
2.36
|
3.48
|
2.36
|
G1; G2; G230; T
|
2-40
|
| N3801S-XXYY |
10.92
|
5.84
|
2.54
|
5.59
|
G1; G2; G230; T
|
2-40
|
| N3802S-XXYY |
11.56
|
5.97
|
3.05
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3803S-XXYY |
13.59
|
7.49
|
3.56
|
7.49
|
G1; G2; G230; T
|
2-40
|
| N3804S-XXYY |
13.59
|
8.08
|
2.97
|
7.87
|
G1; G2; G230; T
|
2-40
|
| N3830S-XXYY |
13.59
|
5.84
|
5.21
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3806S-XXYY |
16.13
|
5.84
|
7.75
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3839S-XXYY |
16.13
|
10.16
|
3.43
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3831S-XXYY |
16.13
|
10.67
|
2.92
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3818S-XXYY |
16.13
|
8.08
|
5.51
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3807S-XXYY |
18.67
|
5.84
|
10.29
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3819S-XXYY |
18.67
|
8.08
|
8.05
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3840S-XXYY |
18.67
|
12.7
|
3.43
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3809S-XXYY |
21.21
|
5.84
|
12.83
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3832S-XXYY |
21.21
|
8.08
|
10.59
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3827S-XXYY |
21.21
|
15.24
|
3.43
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3810S-XXYY |
23.75
|
5.84
|
15.37
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3833S-XXYY |
23.75
|
8.08
|
13.13
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3828S-XXYY |
23.75
|
17.78
|
3.43
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3812S-XXYY |
26.29
|
5.84
|
17.91
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3816S-XXYY |
26.29
|
8.08
|
15.67
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3829S-XXYY |
26.29
|
20.32
|
3.43
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3834S-XXYY |
28.83
|
5.84
|
20.45
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3835S-XXYY |
28.83
|
8.08
|
18.21
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3842S-XXYY |
28.83
|
22.36
|
3.43
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3815S-XXYY |
31.37
|
5.84
|
22.99
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3836S-XXYY |
31.37
|
8.08
|
20.75
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3843S-XXYY |
31.37
|
25.4
|
3.43
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3837S-XXYY |
33.91
|
5.84
|
25.53
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3844S-XXYY |
33.91
|
8.08
|
23.29
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3845S-XXYY |
33.91
|
27.94
|
3.43
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3838S-XXYY |
36.45
|
5.84
|
28.07
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3820S-XXYY |
36.45
|
8.08
|
25.83
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3846S-XXYY |
36.45
|
30.48
|
3.43
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3847S-XXYY |
41.53
|
5.84
|
30.49
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N3841S-XXYY |
76.2
|
70.74
|
2.92
|
5.84
|
G1; G2; G230; T
|
2-40
|
| Technical Characteristics | |
| Contact Material | Pin: Phosphor Bronze, 0.25" sq pin, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G1 = Gold - 10µ" (.25µ) gold over 50µ" (1.30µ) Ni | |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
|
G230 = Tin/30µ"Gold - 30µ" (.76µ) gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
