2.54mm Pitch Connectors
.025" SQUARE PIN, MICRO HEIGHT, SINGLE ROW STRAIGHT
HEADER

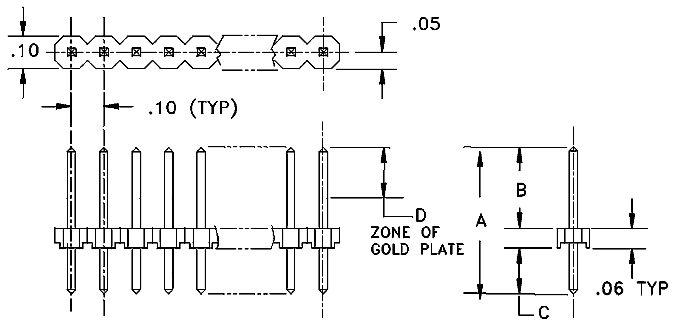

Package Outline Drawing
![](3101%20single%20row.gif)
Characteristics
Product Selection Guide |
Part Number |
Overall
"A"
|
Above
Plastic "B"
|
Below
"C"
|
"D"
|
Plating
Options
YY
|
Number
of
Positions
XX
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
N3101-XXYY |
9.38
|
.330
|
4.06
|
.160
|
2.79
|
.110
|
3.81
|
.150
|
G1; G2; T
|
1-40
|
Technical Characteristics |
Contact Material |
Pin: Phosphor Bronze, 0.25" sq pin,
burr free both ends |
Insulation Material |
Glass Filled Nylon 46, UL94V-O rated black |
Heat Deflection |
260° @ 264 PSI per ASTM D648 |
Insulation Resistance |
5,000 Meg Ohm @ 500VDC |
Current Rating |
3 amp continuous @ 100VDC/contact |
Max Processing Temp |
250°C for 60 seconds |
Plating |
T = Tin 150µ" (3.8µ)
bright tin over 50µ" (1.3µ) Ni |
G1 = Gold - 10µ" (.25µ)
gold over 50µ" (1.30µ) Ni |
G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at
mating end - balance of pin 150µ" (3.8µ) bright tin
over
50µ" (1.3µ) Ni |
