2.54mm Pitch Connectors
.025" SQUARE PIN, BOARD STACKING, DOUBLE ROW STRAIGHT SMD HEADER

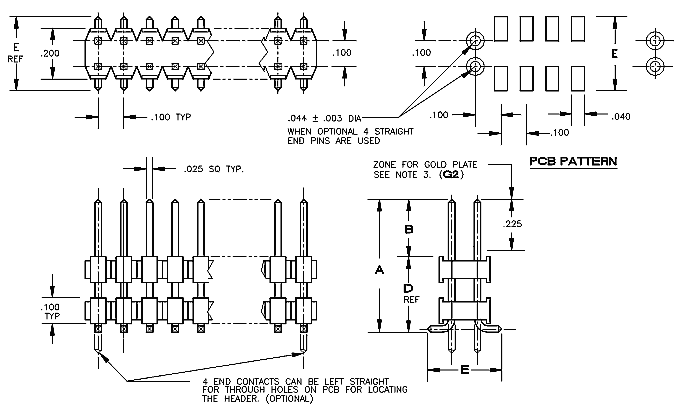

Package Outline Drawing
NOTE: To add 2 straight thru hole end pins, add "M"
to end of Base Part Number.
Example: 1SMD2-225/300/400M-XXYY
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
"A"
|
"B"
|
"D"
|
"E"
|
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1SMD2-225/300/370-XXYY |
13.34
|
.525
|
5.72
|
.225
|
7.62
|
.300
|
9.40
|
.370
|
G2; G230; T
|
4-40
|
| N1SMD2-225/400/370-XXYY |
15.87
|
.625
|
5.72
|
.225
|
10.6
|
.400
|
9.40
|
.370
|
G2; G230; T
|
4-40
|
| N1SMD2-225/500/370-XXYY |
18.42
|
.725
|
5.72
|
.225
|
12.0
|
.500
|
9.40
|
.370
|
G2; G230; T
|
4-40
|
| N1SMD2-225/600/370-XXYY |
23.50
|
.925
|
5.72
|
.225
|
17.8
|
.700
|
9.40
|
.370
|
G2; G230; T
|
4-40
|
| N1SMD2-225/900/370-XXYY |
28.58
|
1.125
|
5.72
|
.225
|
22.6
|
.900
|
9.40
|
.370
|
G2; G230; T
|
4-40
|
| N1SMD2-225/1000/370-XXYY |
31.12
|
1.125
|
5.72
|
.225
|
25.0
|
1.00
|
9.40
|
.370
|
G2; G230; T
|
4-40
|
| Technical Characteristics | |
| Contact Material | Pin: Phosphor Bronze, 0.25" sq pin, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
| G230 = Tin/30µ"Gold - 30µ"
(.76µ) gold over 50µ" (1.3µ) Ni at mating end
- balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
