2.54mm Pitch Connectors
SINGLE ROW RIGHT ANGLE, accepting .025" SQUARE PIN,
SCREW MACHINE SOCKET

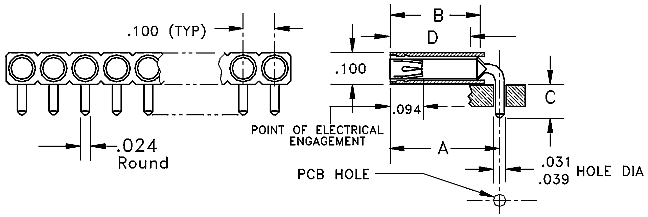

Package Outline Drawing
![](1163r.gif)
Characteristics
Product Selection Guide |
Part Number |
"A"
|
"B"
|
"C"
|
Max Insert Depth
"D"
|
Plating
Options
YY
|
Number
of
Positions
XX
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
N1163R-XXYY |
8.30
|
.327
|
6.90
|
.272
|
3.20
|
.126
|
5.79
|
.228
|
G2; T
|
1-36
|
Technical Characteristics |
Contact Material |
Shell: Phosphor Bronze, Contact Clip:
6 finger BeCu [#47] |
Insulation Material |
Thermoplastic, UL94V-O rated black |
Insulation Resistance |
5,000 Meg Ohm @ 500VDC |
Current Rating |
3 amp continuous @ 100VDC/contact |
Max Processing Temp |
125°C for 60 seconds |
Insertion Force |
200 grams (7.0oz) (typ force per w/.025"
sq pin) 6 finger contact [#47] |
Extraction Force |
88 grams (3.1oz) (typ initital per w/.025"
sq pin) 6 finger contact [#47] |
Plating |
T = Tin - 150µ" (3.8µ)
bright tin over 50µ" (1.3µ) Ni |
G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at
mating end - balance of pin 150µ" (3.8µ) bright tin
over
50µ" (1.3µ) Ni |
