2.54mm Pitch Connectors
TOP or BOTTOM ENTRY, DOUBLE ROW STRAIGHT, LOW PROFILE, accepting .025" SQUARE PIN, SMD SOCKET

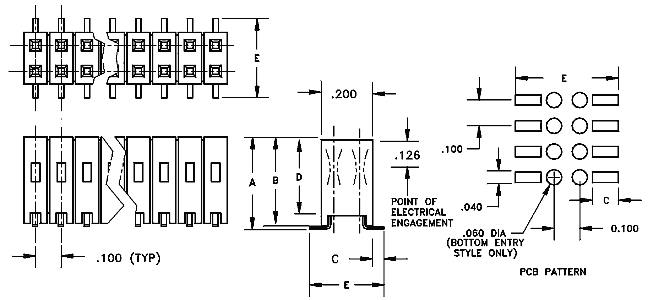

Package Outline Drawing
Technical Information
Contact; 3 sided spring type
Insertion/Extraction Typical Forces (mated .025 sq pin)
Insertion - 200 grams per contact
Extraction - 170 grams per contact
Recommended Male Pin
Top Entry; .200 min .250 max
Bottom Entry; .200 min .250 max plus PCB thickness
Insulation; Hi temp -65°C to +260°C
Characteristics
| Product Selection Guide | ||||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
"E"
|
Plating
Options YY |
Number
of Positions XX |
|||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1148-XXYY |
7.24
|
.285
|
6.98
|
.275
|
2.54
|
.100
|
6.35
|
.250
|
10.41
|
.400
|
G2; T
|
4-80
|
| N1145-XXYY |
7.24
|
.285
|
6.98
|
.275
|
.64
|
.025
|
6.35
|
.250
|
6.34
|
.250
|
G2; T
|
4-80
|
| Technical Characteristics | |
| Contact Material | Contact: 3 Sided Stamped, Phosphor Bronze |
| Insulation Material | Thermoplastic, UL94V-O rated black |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 150°C for 60 seconds |
| Insertion Force | 306 grams (10.8oz) (typ initial force per contact w/.025" sq pin) |
| Extraction Force | 153 grams (5.4oz) (typ initial force per contact w/.025" sq pin) |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
