1.27mm Pitch Connectors
.016" SQUARE PIN, SINGLE ROW STRAIGHT
SURFACE MOUNT HEADER

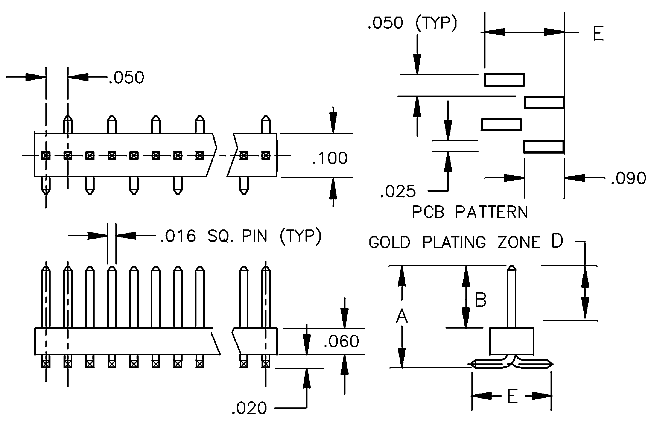

Package Outline Drawing
![](sm3925.gif)
NOTE: To reverse the foot pattern, add an "R"
to the Base Part Number.
Example: NSM3925-XXYY
Characteristics
Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
Plating
Option
YY
|
Number
of
Positions
XX
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
NSM3925-XXYY |
7.49
|
.295
|
5.84
|
.230
|
3.56
|
.140
|
5.71
|
.225
|
G2; T
|
4-20
|
NSM3926-XXYY |
7.50
|
.295
|
5.46
|
.215
|
3.56
|
.140
|
3.81
|
.150
|
G2; T
|
4-20
|
NSM3927-XXYY |
5.46
|
.215
|
3.43
|
.135
|
3.17
|
.125
|
3.56
|
.140
|
G2; T
|
4-20
|
NSM3928-XXYY |
9.14
|
.360
|
7.37
|
.290
|
3.56
|
.140
|
5.08
|
.200
|
G2; T
|
4-20
|
Technical Characteristics |
Contact Material |
Phosphor Bronze, 0.16" sq pin, burr free both
ends |
Insulation Material |
Glass Filled Nylon 46, UL94V-O rated black |
Heat Deflection |
260° @ 264 PSI per ASTM D648 |
Insulation Resistance |
5,000 Meg Ohm @ 500VDC |
Current Rating |
1 amp continuous @ 100VDC/contact |
Max Processing Temp |
250°C for 60 seconds |
Plating |
T = Tin 150µ" (3.8µ) bright tin over
50µ" (1.3µ) Ni |
G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at
mating end - balance of pin 150µ" (3.8µ) bright tin
over
50µ" (1.3µ) Ni |
