1.27mm Pitch Connectors
016" SQUARE PIN, BOARD STACKING,
DOUBLE ROW STRAIGHT HEADER

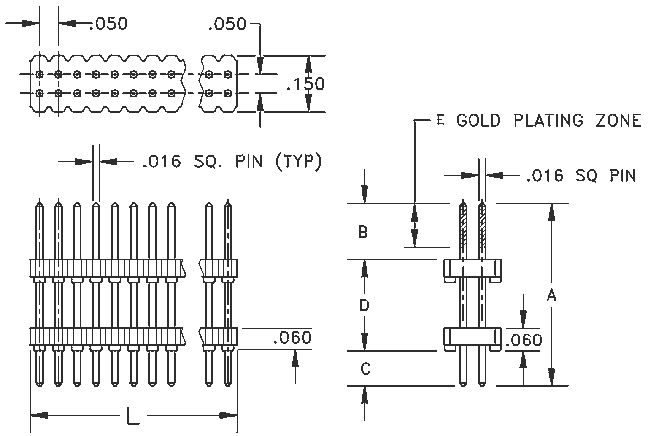

Package Outline Drawing
Characteristics
| Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
G2 Duplex Plating Avail 1 End Only
|
Plating
Option YY |
Number
of Positions XX |
|||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N50DH2-140/120/090-XXYY |
8.89
|
.350
|
3.56
|
.140
|
2.29
|
.090
|
3.04
|
.120
|
3.56
|
.140
|
G2; T
|
4-80
|
| N50DH2-170/120/110-XXYY |
10.16
|
.400
|
4.32
|
.170
|
2.79
|
.110
|
3.04
|
.120
|
3.56
|
.140
|
G2; T
|
4-80
|
| N50DH2-150/185/100-XXYY |
11.05
|
.435
|
3.81
|
.150
|
2.54
|
.100
|
4.70
|
.185
|
3.56
|
.140
|
G2; T
|
4-80
|
| N50DH2-150/285/100-XXYY |
13.59
|
.535
|
3.81
|
.150
|
2.54
|
.100
|
7.24
|
.285
|
3.56
|
.140
|
G2; T
|
4-80
|
| N50DH2-150/385/100-XXYY |
16.13
|
.635
|
3.81
|
.150
|
2.54
|
.100
|
9.78
|
.385
|
3.56
|
.140
|
G2; T
|
4-80
|
| N50DH2-150/485/100-XXYY |
18.67
|
.735
|
3.81
|
.150
|
2.54
|
.100
|
12.32
|
.485
|
3.56
|
.140
|
G2; T
|
4-80
|
| N50DH2-150/585/100-XXYY |
21.21
|
.835
|
3.81
|
.150
|
2.54
|
.100
|
14.59
|
.585
|
3.56
|
.140
|
G2; T
|
4-80
|
| N50DH2-150/685/100-XXYY |
23.75
|
.935
|
3.81
|
.150
|
2.54
|
.100
|
17.40
|
.685
|
3.56
|
.140
|
G2; T
|
4-80
|
| Technical Characteristics | |
| Contact Material | Phosphor Bronze, 0.16" sq pin, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
