1.27mm Pitch Connectors
.016" SQUARE PIN, LOW PROFILE,SINGLE ROW
RIGHT ANGLE HEADER

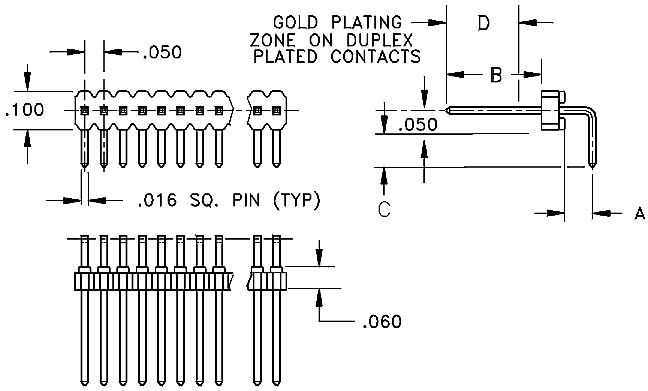

Package Outline Drawing
![](3403r.gif)
Characteristics
Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
Plating
Options
YY
|
Number
of
positions
XX
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
N3403R-XXYY |
1.52
|
.060
|
2.54
|
.100
|
2.29
|
.090
|
2.54
|
.100
|
T; G2
|
1-40
|
N3404R-XXYY |
1.52
|
.060
|
3.82
|
.150
|
2.29
|
.090
|
3.82
|
.150
|
T; G2
|
1-40
|
Technical Characteristics |
Contact Material |
Phosphor Bronze, 0.16" sq pin, burr free both
ends |
Insulation Material |
Glass Filled Nylon 46, UL94V-O rated black |
Heat Deflection |
260° @ 264 PSI per ASTM D648 |
Insulation Resistance |
5,000 Meg Ohm @ 500VDC |
Current Rating |
1 amp continuous @ 100VDC/contact |
Max Processing Temp |
250°C for 60 seconds |
Plating |
T = Tin 150µ" (3.8µ) bright tin over
50µ" (1.3µ) Ni |
G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at
mating end - balance of pin 150µ" (3.8µ) bright tin
over
50µ" (1.3µ) Ni |
